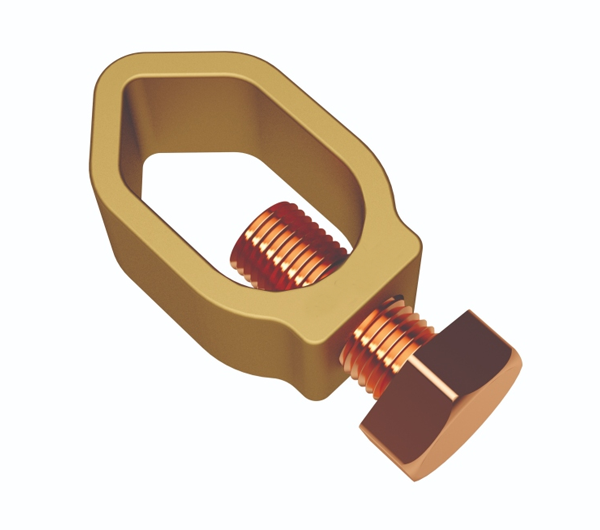

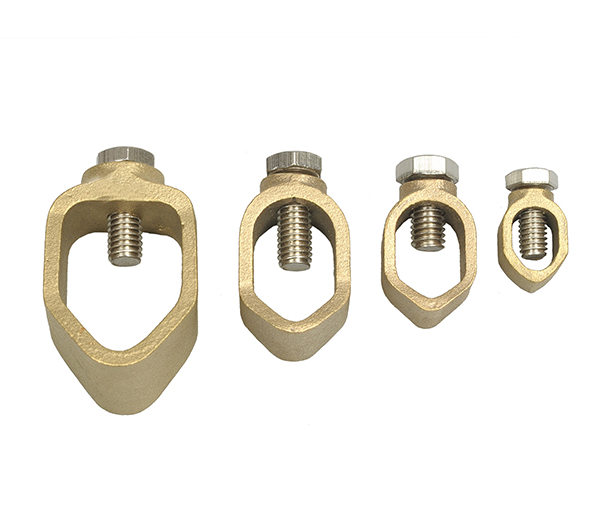

Rod to Cable Clamp Type G

Rod to Cable Clamp Type G

Minimum Order Quantity 5000 Piece
Material Brass
Size G Type
Equipment Type Copper Bonded Grounding Rod
Finish Brass
Rod Diameter As per Description
Color Natural
Packaging Size Export Cartons
Application Earthing Clamps

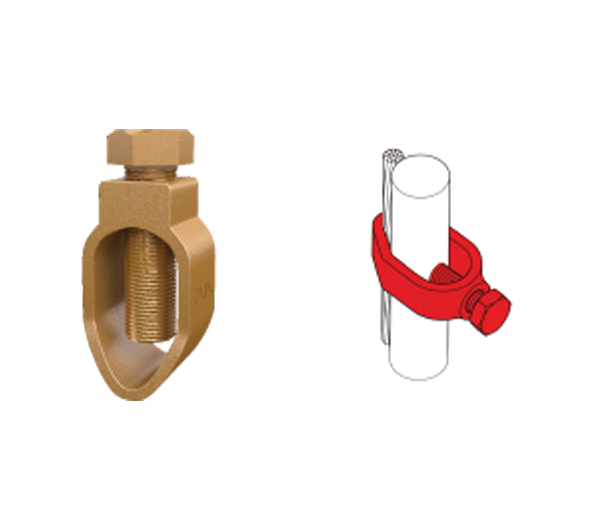

In our large product line, we also offer Rod to Cable Clamp Type G. These products are made from copper alloy. These clamps are exclusively used for joining earth rods to copper cables. Our numerous customers praise this range for having features like excellent resistance to corrosion, sturdy construction and longer service life. Our quality controllers use superior quality raw material and cutting edge technology to fabricate this range of products.

Material Used:
  • Copper alloys, ASM C83600, BS EN 1982, LG-2
  • Bolt: Brass or Steel
Specifications
Rod Dia Cable-Wire Wt/Kg.
3/8″ 6-35mm² 0.030
1/2″ 16-50mm² 0.050
5/8″ 16-70mm² 0.060
3/4″ 35-95mm² 0.060
1″ 70-120mm² 0.140

Minimum Order Quantity:3000-5000 Pieces

Additional Information:
  • Port of Dispatch: India
  • Production Capacity: 5000PCs
  • Packaging Details: Export Standard
Use Case/ Application
