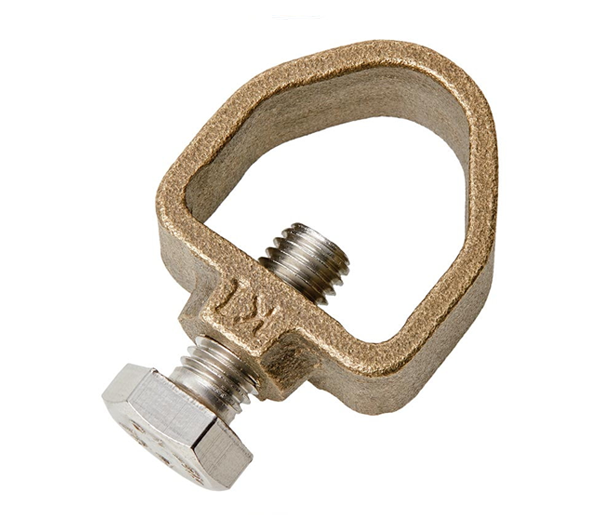

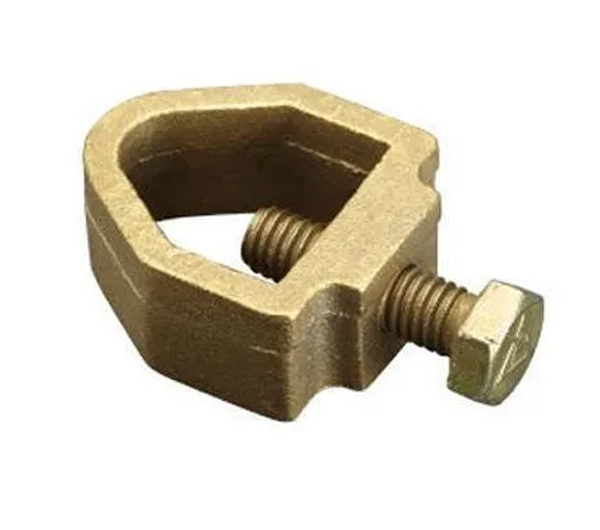

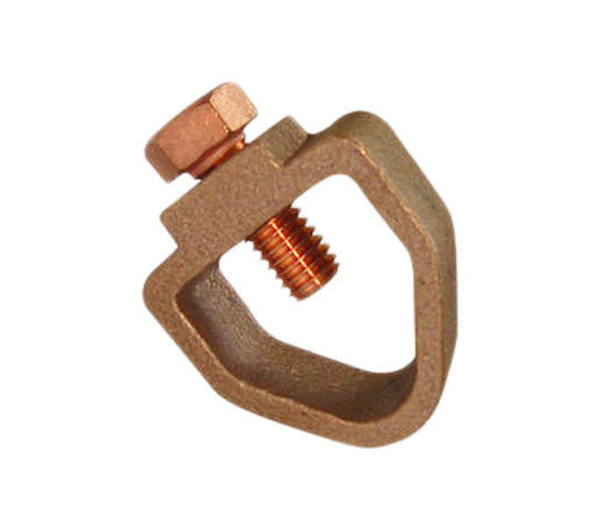

Rod To Tape Clamp – Type A

Rod To Tape Clamp – Type A

Minimum Order Quantity 5000 Piece
Size A type
Equipment Type Copper Bonded Grounding Rod
Material BRASS
Application Earthing Clamps
Color Natural Finished
Brand MM Metal
Rod Diameter 1/2″ – 2.5″

We are one of the trustworthy manufactures and exporters of Rod To Tape Clamp – Type A in the industry. These clamps are widely used for joining to copper tapes. Moreover, these clamps are available in different sizes of earth rods and copper tapes to assure complete satisfaction to our esteemed customers. This standard clamps are highly praised for having various features like long durability, dimensional accuracy, b tensile strength, sturdy construction and high performance.

Material Used:
  • Copper alloys, ASM C83600, BS EN 1982, LG-2
  • Bolt: Brass or steel
Specifications
Rod Dia Tape Size Wt/Kg.
Inches MM MM Each
1/2″ 12.7 26X12 0.15
5/8″ 16 26X12 0.15
3/4″ 20 26X10 0.15
5/8″ 16 30X2 0.16
3/4″ 20 30X2 0.16
5/8″ 16 40X12 0.24
5/8″ 16 51X8 0.3
3/4″ 20 51X12 0.3
1/2″ 12.7 26X20 0.23
5/8″ 16 26X18 0.23
3/4″ 20 26X10 0.23
Additional Information:
  • Port of Dispatch: India
  • Packaging Details: Export Standard
